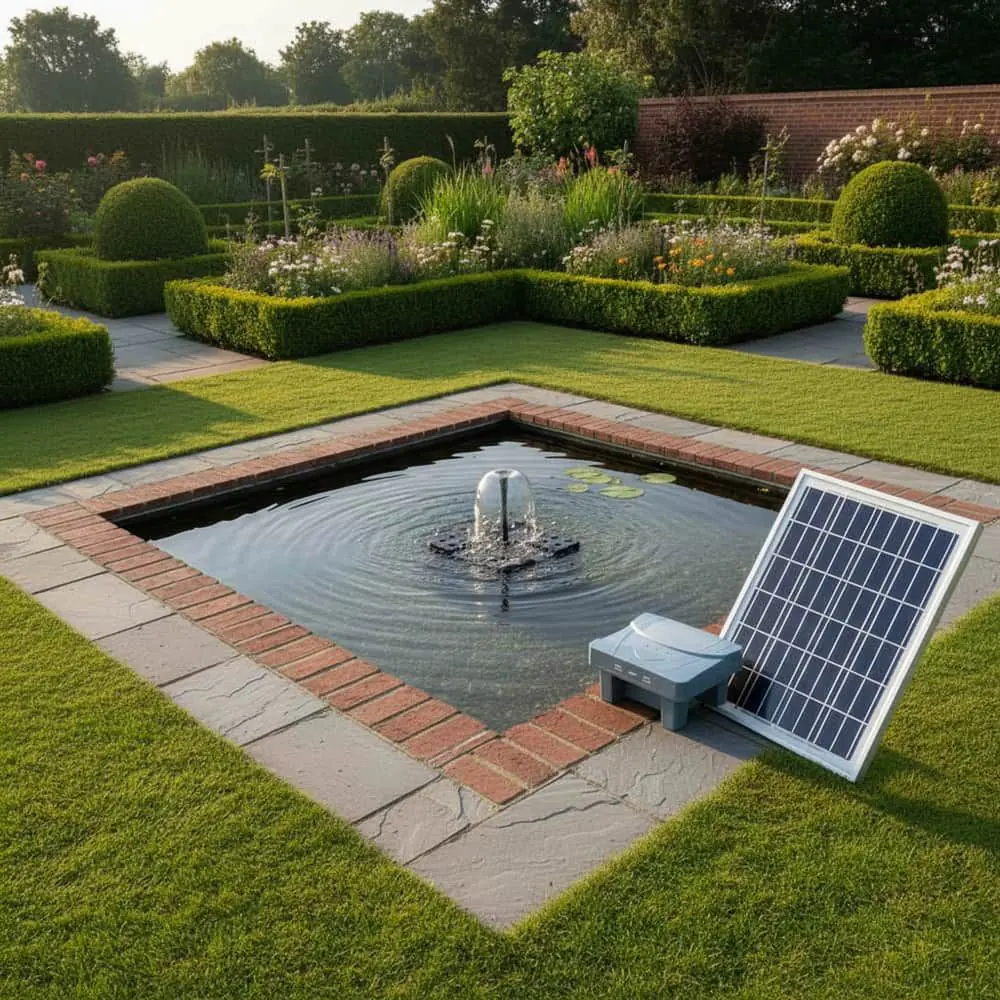

Professional solar-powered filtration system with integrated pump technology, delivering crystal-clear water for ponds up to 3000 litres. Features dual-stage filtration and optional hybrid power for reliable operation.
✓ Ideal for Ponds up to 3000L✓ 1800 LPH Flow Rate✓ Optional Hybrid Power✓ Optional 6ah LiFePO4 Battery✓ 40W High-Efficiency Panel
Requires direct sunlight for optimal performance. Our 40W solar panels boast over 20% conversion efficiency, helping maintain strong operation on bright or light‑overcast days. Output will vary during prolonged dull spells, particularly outside peak summer months, which is normal for solar-powered systems.
Pond Suitability Guide
Pond Size
Suitable for ponds with fish up to 3000 litres, providing a perfect environment for aquatic life with a strong flow rate of 1800 L/H (476GPH) and a max head of 3.5m.
Small Ponds: Ideal
Medium Ponds: Ideal
Large Ponds: Not Recommended
Sunlight Exposure
Requires direct sunlight for optimal performance. Our 40W solar panels boast over 20% conversion efficiency, helping maintain strong operation on bright or light‑overcast days. Output will vary during prolonged dull spells, particularly outside peak summer months, which is normal for solar-powered systems.
Water Features
Enhance your garden with decorative fountains and water circulation, adding elegance and tranquility. Compatible with water features with spray heights up to 2m and supports cascade features with a maximum head height of 3.5m.
Fish Stock Levels
Stock Level
Recommendation
No Fish
Perfect for maintaining water clarity with ease.
Light Stock (e.g., a few small fish)
Suitable for maintaining a clean and healthy environment, thanks to our advanced filtration technology.
Medium Stock (e.g., a moderate number of fish)
Effective with regular maintenance and our superior pump capacity.
Heavy Stock (e.g., densely populated fish)
Not recommended; additional filtration may be necessary.
Innovative Solar Technology & Filtration
Harness the power of the sun with our high-efficiency 40W solar panel and enjoy the benefits of a professional-grade biological and physical filtration system. Includes dry run protection and adjustable flow pump for optimal control.
Efficient Solar Panel
40W Grade A Polycrystalline solar panel with >20% efficiency ensures optimal performance, even in direct sunlight. Panel dimensions: 670mm x 420mm x 23mm.
Customizable Filtration
Choose between Zeolite or Gravel filter media for superior water clarity and eco-friendly filtration, tailored to your pond's needs.
Flexible Usage
Adaptable for various applications including pond filtering, pumping, and decorative fountains with spray heights up to 2m, offering versatility for all garden styles.
Optional Hybrid MPPT Power System
While this product excels as a standalone solar-powered pond filter pump, adding optional hybrid power is ideal for maintaining more consistent performance during cloudy periods or in early spring/autumn when sunlight levels are naturally lower.
Solar Power: The primary energy source with a powerful 40W panel for daily operation.
Optional Battery Backup: Add a large 12.8V, 6Ah LiFePO4 battery for extended operation during cloudy periods.
Optional Mains Adapter: For guaranteed operation regardless of weather conditions, perfect for continuous filtration.
Flexible Power: Start with solar-only and add battery or mains options later as needed.
The optional battery backup contains MPPT technology which is a worlds the first small pond filter pumps
Exclusive Revolutionary MPPT Technology - Features and Benefits
PowerBee Ltd proudly introduces the world's first garden solar pumps with Maximum Power Point Tracking (MPPT) technology - a breakthrough previously only available in industrial solar systems. The battery for this pump includes our own patent pending MPPT system, which automatically optimizes solar energy conversion to deliver 30% more efficiency than conventional solar pumps, ensuring stronger performance in all weather conditions.
Advanced Solar Optimization > 30%
Maximum Power Point Tracking (MPPT) ensures peak efficiency in all weather conditions.
Up to 30% higher energy conversion compared to standard solar systems.
Optimized performance even during (in season) cloudier or lower-light periods.
Extended Performance and Reliability
Faster battery charging for uninterrupted operation.
Extended operating hours for pumps, aerators, and fountains.
Reliable functionality throughout the day and night.
Innovative Technology, Industry First
First to bring MPPT technology to garden and pond solar systems.
Designed for solar pumps, oxygenators, and fountains of all sizes.
Sets a new standard for efficiency and performance in the industry.
How Our Filtration System Works
Our system combines mechanical and biological filtration to ensure optimal pond health:
Mechanical Filtration
The system includes 2 foam filters and 2 fine media nets to remove solids and debris, preventing accumulation in your pond.
Biological Filtration
Zeolite or gravel media foster beneficial bacteria that convert harmful compounds into less harmful ones, promoting a clean and healthy pond environment.
Performance & Reliability
Our hybrid solar pond filter system combines exceptional filtration capability with industry-leading performance. Engineered for consistent operation even during cloudy periods with optional battery backup, this complete system delivers dependable filtration without electricity costs.
Extended Operation
Flexible power options for reliable performance.
Solar Operation: Runs during daylight hours
Optional Battery: 12.8V, 6Ah LiFePO4 battery
Battery Runtime: Extended operation during cloudier periods
Optional Mains: Connect to mains for 24/7 operation
System Performance
Professional-grade filtration capabilities.
Flow Rate: Powerful 1800 LPH (476 GPH)
Max Head Height: 3.5 meters (11.5 ft)
Spray Height: Up to 2 meters with nozzles
Adjustable Flow: Variable to suit your needs
Advanced Filtration
Complete dual-stage filtration system.
Mechanical: 2 foam filters & 2 fine media nets
Biological: Premium zeolite/gravel options
Filter Design: Easy access filter bed
Pond Capacity: Ideal for ponds up to 3000L
Solar Technology
Premium energy capture for reliable operation.
Solar Panel: 40W high-efficiency polycrystalline (>20%)
Connection: 5m lead between pump and panel
Zero Running Costs: Completely off-grid with solar
Build Quality: RoHs, REACH, CE, UKCA certified with 2-year guarantee
Performance Flow Rates - With and Without Battery Backup
Performance measured in optimal seasonal sunlight. Output levels will vary depending on solar intensity — battery power maintains operation during cloudy spells but at reduced maximum heights and flow rates.
Height
Flow Rate (Direct Solar)
Flow Rate (Battery Power)
0m
1800 LPH
1400 LPH
0.3m
1600 LPH
1200 LPH
0.5m
1500 LPH
1100 LPH
0.6m
1350 LPH
980 LPH
0.9m
1150 LPH
760 LPH
1.2m
950 LPH
560 LPH
1.5m
1000 LPH
350 LPH
2.0m
700 LPH
0 LPH
2.5m
450 LPH
-
3.0m
200 LPH
-
Max Height
3.5m
2.0m
Note: Battery operation provides extended pump use during cloudy periods or evenings. While the maximum head height is reduced to 2.0m on battery power, this still provides excellent performance for most pond and water feature applications. The optional battery backup (12.8V, 8Ah LiFePO4) ensures consistent operation even in less-than-ideal conditions.
Pond Filter Pump Solar 1800 LPH And Filter - Installation Instructions
Quick and easy setup guide to get your hybrid solar pump running in just 4 steps. Designed for spring & summer use, this unit performs up to 30% better than comparable models in bright conditions. While it works well on sunny and bright-overcast days, output will naturally be reduced during dull autumn or early spring weather when sunlight levels are lower.
1. Before You Begin
Essential preparation steps to ensure a smooth installation process.
Check all components are included in the box
Select an ideal sunny location for the solar panel
Ensure pond area is ready for pump placement
Have basic tools ready for assembly
2. Solar Panel & Battery Setup
Pond Filter Pump Solar 1800 LPH And Filter - Installation Instructions
Quick and easy setup guide to get your hybrid solar pump running in just 4 steps. Designed for spring & summer use, this unit performs up to 30% better than comparable models in bright conditions. While it works well on sunny and bright-overcast days, output will naturally be reduced during dull autumn or early spring weather when sunlight levels are lower.
Install ground spike at 45° angle facing south
Mount solar panel securely on spike
Position battery box in shaded, dry location
Connect solar panel to battery box (5m cable)
3. Pump Installation
Setting up the water circulation system and lighting features.
Connect pump to battery box (3m cable)
Place pump in pond using float attachment
Secure all cables away from water
4. Testing & Adjustment
Final checks and optimization of your system.
Switch on system and verify operation
Adjust flow control to desired level
Check fountain height and pattern
Confirm battery backup functionality
5. Regular Maintenance
Keep your system running efficiently with these care tips.
Clean solar panel monthly
Remove debris from pump regularly
Check water levels weekly
Inspect cables for wear periodically
6. Important Safety Guidelines
Essential safety measures for long-term operation.
Keep battery box protected from rain
Never run pump without water
Store indoors during freezing weather
Maintain minimum water levels
Need a different size or type of solar pond filter?
The hybrid-powered Pond Filter Pump Solar 1800 LPH harnesses solar energy to run a water filtration system, keeping ponds clean and healthy. Designed for peak spring and summer performance, it delivers up to 30% more power than comparable units in bright conditions. Output will vary in dull weather, especially in early spring or autumn when sunlight levels are naturally lower.
The addition of an battery backup (optional) ensures continuous operation even during periods of low sunlight or at night. Here's a step-by-step explanation of how it works:
Solar Panel Absorption
Advanced photovoltaic cells convert sunlight into DC electricity, providing efficient energy conversion for reliable system operation.
Harnesses solar energy
High-efficiency conversion
Reliable energy source
Environmentally friendly
Power Generation and Storage
Direct power utilization for immediate filtration needs, with excess energy stored in a rechargeable battery for continuous operation.
Immediate energy use
Excess energy storage
Continuous operation
Efficient energy management
Advanced Filtration System
Integrated water pump and filtration media ensure comprehensive debris removal and promote bacterial growth for a healthy pond environment.
Dual-stage filtration
Mechanical and biological processes
Removes debris
Supports beneficial bacteria
Mechanical Filtration Process
Efficient circulation through mechanical filters captures leaves, twigs, and larger debris to maintain water clarity.
Efficient debris capture
Prevents blockages
Enhances water clarity
Sustainable filtration
Biological Filtration Action
Creates an optimal environment for beneficial bacteria, converting harmful compounds into safer substances.
Promotes beneficial bacteria
Converts harmful compounds
Enhances pond health
Supports ecosystem balance
Water Circulation System
Enhanced water movement and oxygenation prevent stagnation and promote a healthy aquatic environment.
Improved water movement
Increases oxygen levels
Prevents stagnation
Supports aquatic life
Battery Backup System
Automatic switching to battery power during low light ensures continuous filtration 24/7.
Automatic battery use
Ensures continuous operation
Reliable backup power
Supports low-light performance
Automated Operation
Smart sensors for optimal system management with extended backup capacity for multiple low-light days.
Smart sensor technology
Optimized system management
Extended backup capacity
Reliable performance
Smart Charging System
Simultaneous power supply and battery charging ensure efficient energy management for reliable operation.
Efficient charging process
Simultaneous power use
Reliable energy management
Ensures uninterrupted performance
Pump Performance Metrics
Performance Metric
Flow Rate
Operating Voltage
18V
At 0m Height
1800 LPH
At 0.5m Height
1500 LPH
At 1.5m Height
1000 LPH
At 2.0m Height
700 LPH
At 2.5m Height
450 LPH
At 3.0m Height
200 LPH
Maximum Height
3.5M
Pump Performance Metrics With Battery Backup
Performance Metrics
Flow Rate
Operating Voltage
12.8V
At 0m Height
1400 LPH
At 0.3m Height
1200 LPH
At 0.6m Height
980 LPH
At 0.9m Height
760 LPH
At 1.2m Height
560 LPH
At 1.5m Height
350 LPH
Maximum Height
2.0M
