Position the unit fully submerged in your pond and plan your tubing runs to the outlet you want to use, whether that’s a filter return, waterfall or fountain. It’s designed as an all-in-one setup so you can handle pumping and filtration from a single compact unit.
✓ 13W UV steriliser✓ 2500L/h pump✓ Ponds up to 9000L✓ Fish ponds up to 6500L✓ Fountain kit included✓ Waterfall outlet✓ Mechanical & bio media✓ Adjustable flow splitter
This pump has an extensive filtration area to help suck up any dirt and debris from your pond. No additional filtration is needed with the TripleAction Evolve 9000, and you can also use the 9000 as a water pump or fountain at the same time.
The Latest Technology All in One Pond Filter Pump
Suitable for ponds with a mix of small fish up to 6500 litres and for ornamental ponds up to 9000L, the compact size of the unit allows it to be discreetly positioned fully submerged in your pond.
9000 Filtration is achieved in 3 ways
Mechanical filtration
Large foam filter inside the unit
Removes solids up to 7 mm
Biological filtration
2 x zeolite chambers
1 x neutral biomedia chamber
Extracts ammonia from the water
UV clarification
UV helps microscopic green algae clump
Ready for collection
Use the 9000 Filter Pump as a Waterfall or Fountain at the same time
Connect tubing to the 2500 L/H pump and create a waterfall cascade. The pump has a hosetail outlet to attach 12 - 25 mm garden tubing and has a max head of 3 meters.

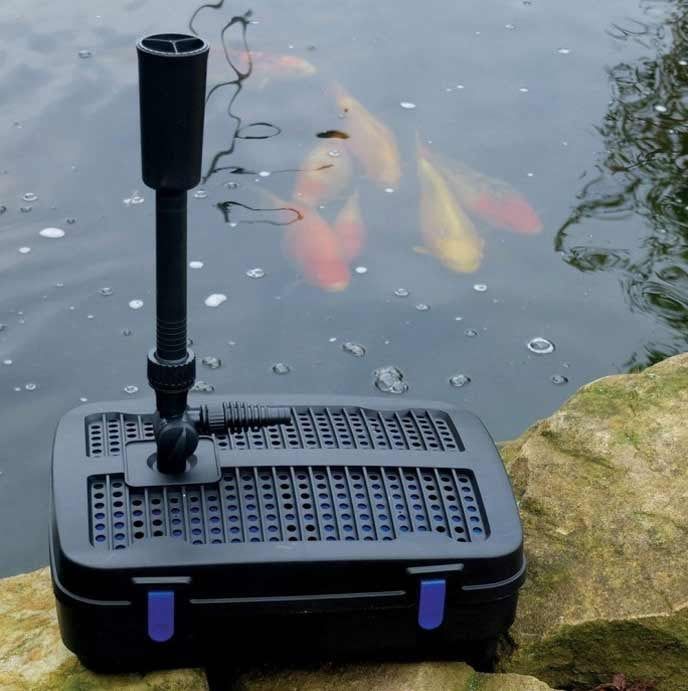

Use the 9000 Filter Pump as a Fountain Feature
A fountain kit is included with the TripleAction 9000 so you can enjoy a fountain spray effect simply by attaching a fountain head of your choice (3 different heads included). It also comes with a water outlet splitter to divert water to a separate feature.
This is an entry level filter pump and helps keep a fish pond clean with routine maintenance involved. It is easy to set up and install.
Place unit at bottom of pond – preferably on a level surface raised approx. 10cm from floor (eg, upturned plant pot or clay brick) with outlet facing upwards.
Once installed the pond water will flow through the pump as the pump’s impellor draws in water. It is always best to position your pump at the opposite end to where the water returns to the pond to provide maximum circulation.
Your unit is supplied with a hosetail. Pond hose size 12-25mm (1/2” to 1” ) can be attached to the inlet hosetail. Cut the inlet hose to the size appropriate to the size of hose you are using. Then connect the hose from your pump to your filter system or position it where you want the water to return. Ensure a watertight seal by the use of hoseclips.
Maintenance
Occasionally large solids may block the holes in the filter cage surrounding the pump – these should be carefully wiped away. A clogged or dirty intake will put a strain on the motor and greatly reduce its performance. If the area where the pump is stood is very dirty, raising its position slightly will assist flow. To clean the pump, remove the impellor housing and impellor. Use clean water and a small brush to remove debris (see below)
Changing the UV Bulb / Maintenance of the unit
A UV indicator around the body of the unit lights up to shown UV is working. If it doesn’t light up, or if the bulb has been used for over 6 months you will need to change the UV bulb inside the unit. To open the unit up, first disconnect from power supply and lift clear of water.
Remove backing plate with a cross head screwdriver then around the middle of the unit there are two push clips – hold these in then pull the main body apart. The foam is now accessible and can be cleaned if required. Access the impeller by again pressing the two clips around the top in and pulling the top case away from the main unit. Turn the impellor guard to gain access to the impellor and clean if required. The UV bulb can be accessed by unscrewing the screw located in the base of the remaining black casing. Turn the casing as indicated by the two arrows on the casing
Limited Warranty
This product is guaranteed for a period of 12 months (excluding rotor assembly) from the date of purchase for material or manufacturing defects. The guarantee covers the substitution of defective parts. However, the guarantee is considered null and void in the case of improper use, improper handling or negligence on the part of the buyer. If your pondXpert pump fails please take it back to the retail outlet from where it was purchased. You will be required to take your receipt/proof of purchase with you. This does not affect your statutory rights.
