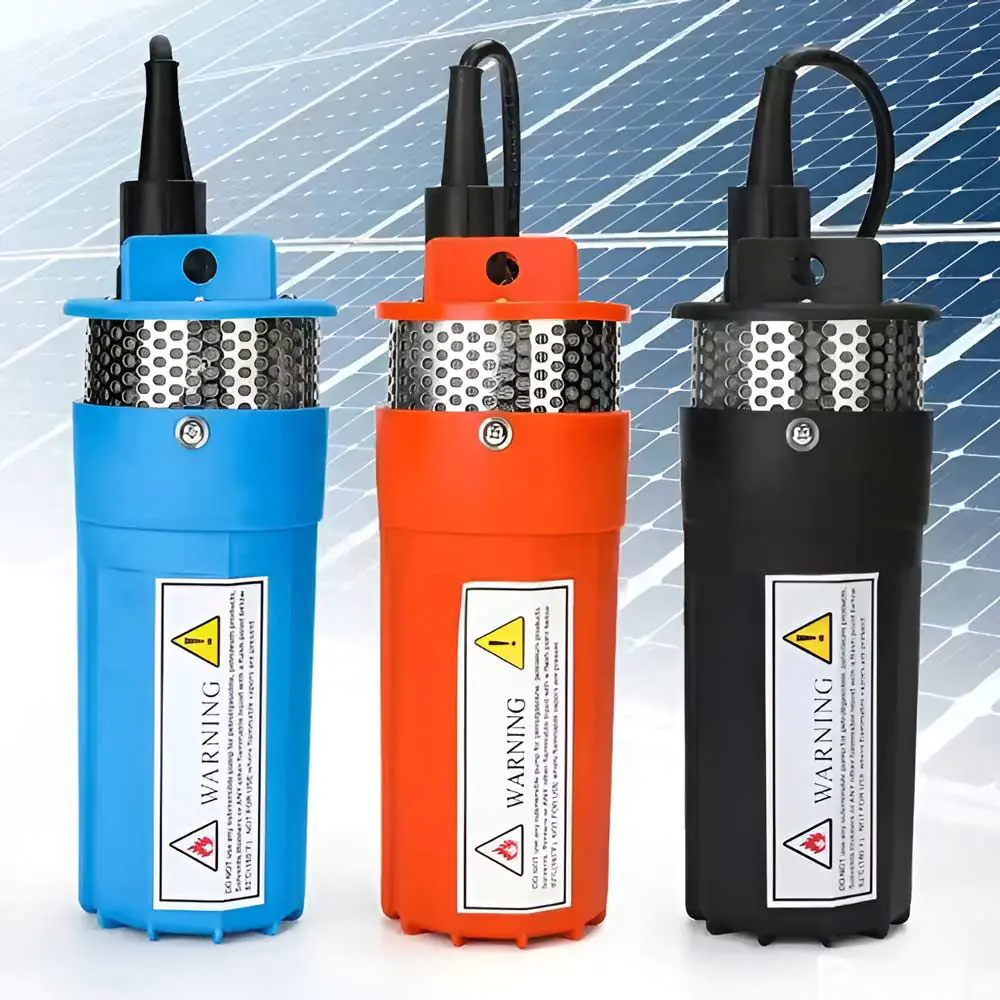

How the 12V Deep Well Submersible Pump Works – Complete Guide
Learn how your 12V deep well pump efficiently delivers water from wells, boreholes, or remote sources—ideal for solar or off-grid battery-powered operation.
✓ 12V DC Powered
✓ Deep Well Design
✓ Solar or Battery Ready
✓ Built-in Protections
✓ High Lift Performance
Basic Operating Principles
This submersible pump uses robust DC motor technology to lift water from deep below ground, powered by your choice of solar panel or 12V battery.
Power Input System
- Connect directly to a 12V battery or solar panel
- Draws DC power for high efficiency and portability
- Solar use: recommended 100W+ panel
- Works off-grid or in remote locations
Pumping Mechanism
- Sealed motor spins internal impeller or piston
- Creates suction, lifting water from up to 30m depth
- Delivers steady flow to surface via pipe or hose
- Fully submersible and waterproof for safety
High Lift & Flow
- Max head: up to 30 metres (well depth-lift)
- Delivers up to 1,000 LPH (16.6 L/min) at optimal conditions
- Designed for deep wells, boreholes, or vertical water transport
Power System Operations
This pump is engineered for off-grid living: use with solar panels, deep cycle batteries, or a regulated 12V DC supply for reliable daily water access.
Solar Panel Operation
- Connect to a solar panel (12V, 100W or higher)
- Add a charge controller for battery charging or regulation
- Runs automatically in sunlight—no need for mains power
- Perfect for remote or sustainable well operation
Battery Operation
- Works with any suitable 12V battery (lead acid, LiFePO4, etc.)
- Enables water pumping at night or during cloudy days
- Include a fuse for pump protection
- Consistent flow regardless of sunlight (battery state dependant)
Direct DC Power
- Compatible with regulated DC power supplies
- Great for test setups or emergency backup
- Ensure voltage is never above 15V for longevity
Lift and Flow Performance
Performance depends on well depth (“head”) and input power. As lift height increases, flow rate will reduce—choose power sources accordingly.
Depth vs. Flow
- 0m (ground level): Max flow ~1,000 LPH
- 10m lift: ~850 LPH
- 20m lift: ~600 LPH
- 30m lift: ~300–400 LPH
- Use shortest pipe run for best flow
Power vs. Performance
- Input voltage and wattage affect lift and flow
- 100–120W recommended for full spec pump
- Batteries offer consistent power, solar is variable
- Controller can optimize operation
Application Considerations
- Irrigation: use tank float switch to prevent dry run
- Livestock: oversize battery for overnight fills
- Household/backup: ensure adequate stored water volume
- Check water level seasonally for uninterrupted supply
Built-in Protection Features
This pump incorporates advanced protections to extend life and improve safety, helping ensure reliable operation in rural/off-grid settings.
Dry Run Protection
- Some models include automatic shutoff if no water detected*
- Prevents motor burn out
- Check water level before use for best results
Voltage & Overcurrent Protection
- Protects against input surges or voltage spikes
- Fuse installation recommended (10A)
- Helps avoid pump or battery damage
Waterproof Construction
- Fully sealed IP-rated body
- Corrosion-resistant for long-term immersion
- Safe for continuous submersible use
Energy Efficiency Features
Engineered for reliable, low-wattage water delivery for off-grid systems—maximizing performance with minimal energy usage, perfect for renewable power setups.
Direct DC Operation
- No need for AC conversion = minimal energy loss
- Optimized for 12V solar/battery input
- Perfect for off-grid households or backup
Modern Motor Technology
- Efficient sealed DC motor/impeller design
- Long lifespan, robust outdoor construction
- Operates efficiently even with variable sunlight
Low Standby Consumption
- Zero power draw when not in use
- No phantom drain on battery system
Operational Maintenance
Simple maintenance ensures reliable water supply for years. Always disconnect from power before any servicing.
Routine Checks
- Inspect cable and connectors for wear monthly
- Flush intake and outlet to clear silt/debris regularly
- Verify fuse/battery status periodically
End of Season Care
- Remove pump from well if freezing is expected
- Clean and store dry in off-season
- Check seals and O-rings annually
Long-Term Durability
- Quality stainless steel/plastic construction
- IP-rated body resists corrosion and ingress
- Minimal servicing required if used properly
Technical Notes
Performance may vary based on: input voltage, installation height, hose diameter/length, and well water quality. Always match system capacity to your water needs.
Environmental Factors
- Very low water levels can affect cooling and longevity
- Cold temperatures may limit use; remove before freezing
Installation Tips
- Use correctly rated cable for long runs
- Protect connections from moisture
- Avoid kinks or sharp bends in outlet hose
Optimization
- Use float or tank switch to prevent dry running
- Oversize battery for reliable operation in overcast periods
How It Works - At A Glance
Solar or battery power is delivered to the submersible pump, which lifts water up to the surface for your home, garden, irrigation, or livestock—off-grid and reliable.
Typical Applications
- Borehole and deep well supply
- Remote livestock watering
- Irrigation tanks, water transfer in rural locations
- Emergency/off-grid water extraction
Key Benefits
- No mains electricity required
- Portable and easy to install
- Low maintenance, highly reliable
At-a-Glance Performance
- 12V DC, up to 30m vertical lift
- Max flow ~1,000 LPH at ground level
- Optimized for solar, batteries, off-grid living
Reliable Water Delivery – Off Grid or On Demand
Your 12V deep well submersible pump offers clean water wherever you need it. With smart protections and energy-efficient operation, it’s perfect for modern off-grid homes, rural properties, or emergency backup water needs.
