Overview
Genuine 4W Smart Garden SW1040D hybrid replacement kit — keeps your Wychwood Falls and other hybrid water features running day and night.
4W SC4W0DT crystalline solar panel — twice the power of the SW1020D

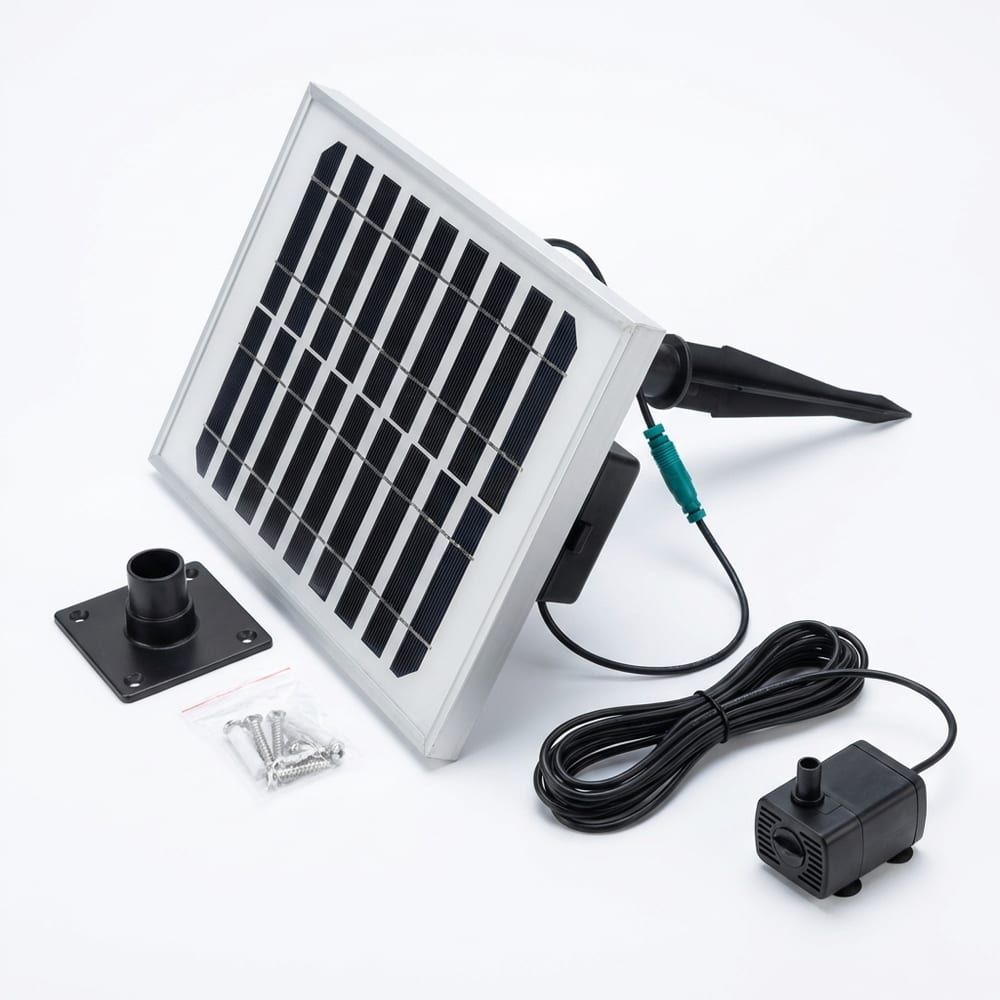

Replace the existing solar panel, battery and pump on your Smart Garden 4W hybrid water feature with the genuine SW1040D kit. Everything is supplied as a matched set — 4W SC4W0DT panel, integrated BPM74V2000 Li-ion battery, and SP-250XS submersible pump — so you restore performance without guesswork. The kit is designed for the Wychwood Falls and compatible 4W hybrid water features.
Everything you need to bring your hybrid water feature back to perfect working condition — a bigger 4W panel, a larger 2000mAh battery, and a higher-capacity SP-250XS pump than the 2W SW1020D kit.
Kit Components
SC4W0DT 4W 10V solar panel
BPM74V2000 integrated battery
SP-250XS submersible pump
Ground spike + wall bracket
All mounting hardware included
Performance
Up to 250 litres per hour flow
9.5W max pump power
4–6 hours of stored battery runtime
On/off switch for battery conservation
IP68 waterproof pump rating
Reliability
Hybrid solar + battery technology
Automatic switching between modes
Weather-resistant construction
Matched component set
Smart Garden 1-year warranty
Advanced Hybrid Power Technology
The SW1040D uses the same hybrid principle as Smart Garden's popular 2W SW1020D, scaled up to 4W for bigger features and longer running times. The 4W SC4W0DT panel powers the SP-250XS pump directly while simultaneously topping up the integrated 7.4V 2000mAh battery. When sunlight drops, the system switches to battery power automatically — no manual intervention needed.
Daytime
Direct solar power to the pump
Battery charges in parallel
Maximum flow rate
Zero running cost
Silent operation
Evening & Cloudy
Automatic switch to battery power
4–6 hours of stored runtime
Seamless transition
No flow interruption
Extended enjoyment after dark
Smart Power Management
On/off switch saves charge for later
Charge fully, then flick on for evenings
Battery protection circuit
Weather-adaptive performance
Works in cloudy UK conditions
Which Water Features Does This Fit?
The SW1040D is the 4W hybrid replacement kit for the Smart Garden Wychwood Falls. It is also likely to fit other Smart Garden 4W hybrid water features in the current range (Buddha, Pot Falls, Feather Falls, Fengshui Falls, Kingsbury, Otter Falls, Quad). If your feature was originally supplied with a 4W panel and a BPM74V-series battery box, this is the correct spare.
Confirmed Compatible
Wychwood Falls — 4W hybrid version
Likely Compatible (Same Range)
Buddha
Pot Falls
Feather Falls
Fengshui Falls
Kingsbury
Otter Falls
Quad
How To Check
Look for a 4W panel marking
Battery box model starts "BPM74V"
Pump model SP-250XS on label
Teal/green push-fit connectors
Still unsure? Call us on 07782 223103
SW1020D vs SW1040D — Which Do You Need?
Smart Garden makes two hybrid replacement kits. Pick the one that matches the wattage printed on your original panel.
SW1020D (2W)
2W SC2W0DT panel
NE90X3S pump
Smaller features
Shorter battery runtime
For 2W hybrid water features
SW1040D (4W) — this kit
4W SC4W0DT panel
SP-250XS pump (250 LPH)
2000mAh battery — 4–6 hrs runtime
Larger features like Wychwood Falls
For 4W hybrid water features
Not Sure?
Check the watts printed on the back of your old panel
2W = order SW1020D
4W = order this SW1040D
Phone/text us a photo: 07782 223103
We'll identify it for you before you buy
Why Buy This From PowerBee
Genuine Smart Garden Products stock — not a third-party copy
16 years of solar water feature expertise — we know which spare fits which feature
Free 24-hour UK mainland delivery on every order
30-day money-back guarantee
Professional installation support by phone or text: 07782 223103
Best Buy Award winner 2021–2025
Rate this product
0/5
0 Reviews
Please rate this product, describe its advantages and disadvantages, please share your impression about its use
No special tools are needed. The SW1040D drops straight in as a replacement for any 4W Smart Garden hybrid water feature kit. Set aside 10–15 minutes from start to flowing water.
Step 1 — Remove Old Kit
Unplug the old panel at the cable connector
Lift the old pump out of the reservoir
Empty any debris from the pump chamber
Rinse the reservoir if needed
Step 2 — Mount the Panel
Choose a south-facing spot in full sun
Push the ground spike into firm soil, OR
Use the wall bracket + supplied screws for a fence/wall
Angle the panel face toward the midday sun
Step 3 — Connect the Pump
Place the SP-250XS pump in the reservoir, fully submerged
Route the 3m cable neatly back to the panel
Plug the teal push-fit connector into the battery box
Listen for a click — connector is weatherproof when seated
Step 4 — Fill, Switch On, Done
Fill the reservoir until the pump is fully covered
Flick the battery box switch to ON
Pump should start within a few seconds in sunlight
Allow the battery to charge for a full sunny day before first evening use
Important Notes
Never run the pump dry — damage from dry running is not covered by warranty
Clean the pump filter sleeve every 2–4 weeks for full flow
Bring the panel and pump indoors over winter to protect from frost
The SP-250XS pump and SC4W0DT panel are only compatible as a matched set — don't mix with older non-hybrid 2130 or 2030 kits
The SW1040D replaces the solar panel, battery and pump on your Smart Garden hybrid water feature with a matched 4W replacement set. Hybrid power means your feature keeps running when the sun dips behind a cloud or sets for the evening — the battery smooths the gaps.
Daytime — Direct Solar Power
During the day the 4W SC4W0DT solar panel converts sunlight straight into power for the SP-250XS pump. Water circulates at full flow through your water feature while the integrated BPM74V2000 7.4V 2000mAh battery charges in the background.
Dusk & Cloudy — Automatic Battery Mode
When sunlight drops — during a cloudy spell, at dusk, or after dark — the system automatically switches to battery power. A full charge holds 4–6 hours of running time, so your feature keeps flowing through the evening without any manual intervention.
On/Off Switch — Save It For Later
The battery box has a physical on/off switch. Turn the pump off during the day to let the battery charge fully, then flick it back on for special occasions — garden parties, summer evenings, or when guests arrive — to get the full 4–6 hour runtime when you actually want the feature running.
Why a Hybrid Kit Beats Solar-Only
Standard solar-only water features stop the moment a cloud passes. With the SW1040D's integrated battery, flow is smoother, quieter and more consistent — and carries on after sunset instead of cutting off at the first sign of shade. The same panel that powers the pump charges the battery in parallel, so you get both jobs done from one sunny hour.
