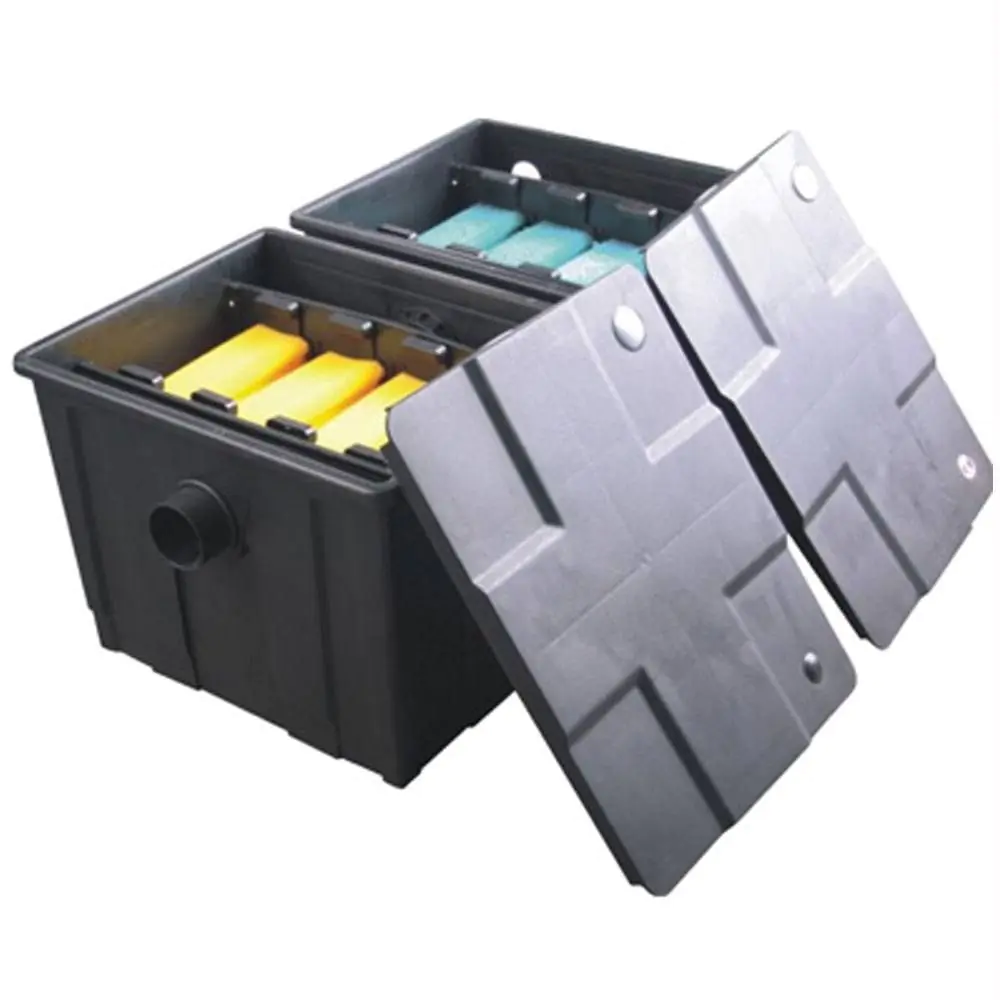

MultiChamber 18000 Pond Filter Box

Less Than 21 Left In Stock.

Rrp: £399.99

Our Price: £189.99 Free UK Delivery

  • MultiChamber 18000 Pond Filter Box

  • Multi Chamber Filter for Ponds up to 18000 Litres

  • High Inlet/ Outlet means Filter can be buried

  • Inlet 20/25/32/40 mm Outlet 70mm

  • Thermometer Built into Lid

  • Foam & Biomedia

  • Optional GreenStop Pro UVC

  • Dimensions 90 x 54 x 41 cm (L x W x H)


  • GreenStop Pro UVC - +£49.99
Product Description
Specifications
Reviews
Installation
How It Works
FAQ's

MultiChamber 18000 Pond Filter Box

Buy a MultiChamber 18000 Pond Filter Box, Flow Through Multi Chamber Box Filter for Fish Ponds Up to 18000 Litres, Best Prices, Top Reviews, Free UK Delivery

At last a Genuine Multi Chamber Professional Pond Filter Box that anyone can afford. We feel sure that these new units will prove a hit.

Multi Chamber Pond Filter Box with Foam & Biomedia for ponds up to 18000 Litres (4000 gall)

Suitable for goldfish ponds up to 18000 Litres (4000 gallons) & for Koi ponds up to 9000 Litres (2000 gallons)

The 18000 Pond Filter Box has Easy Clean Sponges

Easy Clean Filter sponges simply lift out by the handles the squeeze out dirt by using the handy grips built on to the end of the sponges

The water flows through the chambers and is forced through this foam and bio media, Cleaned water then returns to Your Pond.

Inlet/ Outlet is located high up on the box so the filter Box can be buried

Max. Pond Size 18000 litres
Max Flow 10000 lph
Dimensions 90 x 54 x 41 cm (L x W x H)
Running Costs: 0 Watts / 36 watts if GreenStop Pro UVC is chosen
Outlet : 70mm
Media: Large capacity with Foam & Bio Media included
Power Cable Length (m): 5
UV Size: Optional : 36w
Hosetail: 20mm, 25mm, 32mm, 40mm
Latest reviews
Rating

Summary

  • Unpack all components carefully.
  • Once installed and connected to a suitable pump the pond water will flow through the filter.
  • This box filters are pump-fed, external filters with an integral UVC unit, ideal for being partially buried adjacent to your pond or being positioned above ground if desired. The filter may also be concealed at the top of a waterfall.
  • Your filter is supplied with a translucent hosetail. This should be screwed into the threaded filter inlet. Pond hose size 20-40mm (3/4 " to 11/2") can be attached to the inlet hosetail.
  • Your pump and filter outlet should be positioned at opposite ends of the pond to promote maximum circulation.
  • Cut the inlet hose to the size appropriate to the size of hose you are using.
  • Then connect the hose from your pump to this inlet hosetail and secure with hose clips.

Your multi-chamber box filter comes complete with mechanical and biological filter media. The filter foam acts as a mechanical barrier to pick up solids whilst the plastic bio-media helps to developriendly bacteria. These friendly nitrifying bacteria help to convert harmful fish waste and other organic waste (ie, ammonia, nitrite) into harmless nitrate. This biological maturationprocess usually takes 6-8 weeks. It is recommended that you do not switch on your UVC during this period.

Your pond pump and UVC filter are powered by electricity, meaning they need to be connected to the mains supply. Special care must be taken during this part of the installation process and we recommend consulting an electrician to acquire assistance.

For maximum flow performance (reduced friction loss) it is recommended that the lowest unused section of all pump and filter hosetails be removed if possible.

NO PART OF FILTER UNIT SHOULD EVER BE SUBMERGED IN WATER.

Installation

Once installed and connected to a suitable pump the pond water will flow through the filter.

PondXpert box filters are pump-fed, external filters with an integral UVC unit, ideal for being partially buried adjacent to your pond or being positioned above ground if desired.

The filter may also be concealed at the top of a waterfall.

Your filter is supplied with a translucent hosetail. This should be screwed into the threaded filter inlet. Pond hose size 20-40mm (3/4” to 11/2”) can be attached to the inlet hosetail.

Your pump and filter outlet should be positioned at opposite ends of the pond to promote maximum circulation.

Cut the inlet hose to the size appropriate to the size of hose you are using. Then connect the hose from your pump to this inlet hosetail and secure with hose clips.

Maturation of the Filter

Your multi-chamber box filter comes complete with mechanical and biological filter media. The filter foam acts as a mechanical barrier to pick up solids whilst the plastic bio-media helps to develop ‘friendly’ bacteria.

These friendly nitrifying bacteria help to convert harmful fish waste and other organic waste (ie, ammonia, nitrite) into harmless nitrate.

This ‘biological maturation’ process usually takes 6-8 weeks. It is recommended that you do not switch on your UVC during this period.

Maintenance

As the filter does it’s job the foam filters will block up reducing water flow. If the pond is very dirty then the foams may need cleaning every couple of days or so at first. Cleaning procedure:

Switch off any electrical items feeding or inside the pond (including the filter itself).

Take the foam filters out of the unit and carefully wash away any solids using a bucket of POND WATER. Once clean replace the foams back in position.

If your filter is ever taken away from the pond (ie-winter storage) then all of the filter media (foams and biomedia) must be thoroughly cleaned before restarting.

Your filter will then need to undergo the ‘maturation’ procedure phase as described above.

Filtration Spares and consumables

The filter is supplied with everything you need to get started (including filter media, UV bulb and quartz tube for the UV).

Over time these parts may need replacing and can be purchased from your retailer.

The multi-chamber design of the unit means you are free to test other media types (Japanese matting, Alfagrog etc) should you desire.

Bottom Drain Plug

Your pondXpert filter comes complete with an integral drain. To periodically drain the sludge from the base of the filter simply unscrew the drain cap.

This drain point can also be used to backflush out debris if required.

Periods of operation

Maintain filtration 24 hrs a day through the fish feeding season (typically early March-October when the water temperature is above 10 degrees C), but preferably all year round.

In the winter operating the pump and filter will maintain a background level of friendly bacteria in the filter and help prevent the pond icing up in all but the severest weather conditions.

Changing the UV Bulb

The UV bulb should be changed at the beginning of every new season. The lamp may look like it is working but the levels of effective UV radiation decrease over time.

Disconnect the unit from the electricity supply.

Push open the top access chamber to the UV. Remove the UV Clarifier unit by gently pulling the retaining clips. Unscrew the wired end-cap by rotating anti-clockwise.

Remove the UV bulb by gently pulling out of the electrical connection.

Insert a new UV bulb by gently pushing into the electrical connection.

Re-assemble the end cap by rotating clockwise.

Clip the UV unit back into the top housing and reposition the top lid in place.

Your filter works by connecting it to a solids-handling filter via the stepped hosetail inlet via pondhose.

Dirty water enters through the multistage hosetail past the UVC where it is pushed through foam into the first chamber of biomedia.

The water is then flows into a second chamber and is forced through foam up and over into the final chamber.

Clean water then returns.

There are currently no questions for this product : Pond Filter Box With UVC Filtobox 18000
