Set the floodlight and separate solar panel in the positions you need, using the included cable so the panel can be placed where it receives strong direct sunlight.

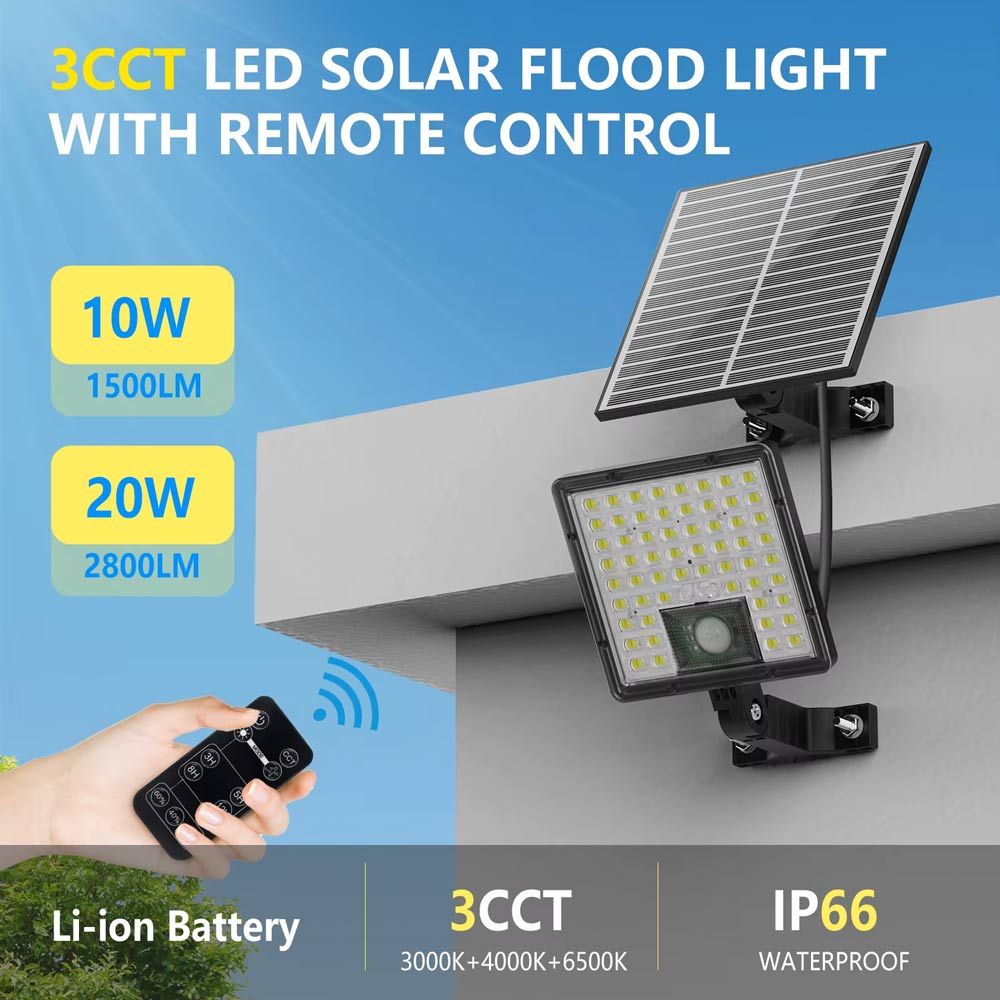

✓ Up to 2800 Lumens✓ Selectable 3CCT✓ PIR Motion Sensor✓ Remote Control✓ IP66 Rated
Choose warm, neutral or cool white output (3000K / 4000K / 6500K) to suit the space, then set your preferred operating style — motion-boost with dim standby, or continuous lighting with adjustable brightness and timers.
Remote control for lighting mode, brightness and timer settings.
Adjust settings from ground level — ideal when the floodlight is mounted higher up for wider coverage. The light also remembers your last colour temperature setting for next use.
Lighting Modes & Remote Control
Mode Type
How It Works
Settings
Motion Detection Mode
At night, the light stays on dim. When motion is detected, brightness increases to 100%, then returns to dim after approx. 20 seconds.
No timer or brightness controls.
Continuous Lighting Mode
At night, the light remains on constantly at the selected brightness.
Tip: Colour temperature (3000K / 4000K / 6500K) can be set in either mode, and the light remembers your last setting.
Selectable 3CCT Lighting
Switch between warm white (3000K), neutral white (4000K) and cool white (6500K) depending on whether you want a softer look for entrances and patios, or maximum visibility for security and work areas.
Applications & Uses
Designed for larger outdoor spaces where wide coverage and flexible control make day-to-day security and access safer.
Residential
Driveways and entrances
Yards and side access routes
Garages and outbuildings
Patios and larger gardens
Commercial
Business entrances
Outdoor workspaces
Car parks and loading zones
Perimeter walkways
Remote Sites
Farms and barns
Storage yards
Equipment areas
Access tracks
Separate Panel Placement
Flexible panel positioning with an included 5m cable.
The separate solar panel allows flexible installation: mount the floodlight where you need the coverage, and position the panel where it receives the best direct sunlight.
Key Features
A practical combination of wide-area illumination, selectable colour temperature and remote-controlled operating modes.
Wide-Area Lighting
Up to 2800 lumens output
60° × 120° beam angle
Adjustable lamp positioning
3CCT Output
3000K / 4000K / 6500K selectable
Works in any operating mode
Remembers last colour setting
Detection & Control
PIR detection up to 8–10m
120° sensing angle
Remote for mode and timers
Brightness selection in continuous mode
Weather Protection
IP66 weatherproof rating
ABS + PC UV-resistant housing
-20°C to 45°C operating range
Technical Excellence
Component choices are aimed at dependable outdoor performance, with efficient solar charging and robust weather protection.
Lighting System
58 × 2835 SMD LEDs
Up to 2800 lumens output
Selectable 3CCT colour temperature
Power System
10V / 10W polysilicon panel
7.4V 3600mAh Li-ion battery
Approx. 4–6 hour charge time
Construction
IP66 weather protection
ABS + PC housing
Made for outdoor installation
Built for exposed outdoor locations with wide-area illumination.
Installation & Positioning Guide
Mount the floodlight securely using the included fixings, then position the solar panel where it receives strong direct sunlight. Pole mounting is possible with suitable U-clips (not included).
Mounting
Recommended height: 2–5 metres
Wall mounting hardware included
Pole mounting possible
U-clips not included
Best Positioning
Angle lamp for target coverage
Position panel for direct sunlight
Avoid permanent shading
Operating Setup
Choose mode: motion or continuous
Set timer and brightness
Select 3CCT colour temperature
What’s Included
Floodlight unit
Panel with 5m cable
Remote control
Mounting kit
User manual
Wide-area lighting with selectable colour temperature to suit the space.
Installation is straightforward and requires only basic DIY skills. The premium-grade light head and bracket are designed for secure mounting using the strong nuts and bolts provided. Simply fix the bracket to your chosen wall or surface, position the separate solar panel for maximum daylight, and connect via the 5m cable.
Flexible installation – mount on a wall or pole to suit your space
Wall Installation
Secure the bracket to your preferred height (2–5 metres recommended) for targeted lighting. Both the light head and panel adjust up to 120° for precise angles.
Separate Panel Placement
Install the solar panel up to 5m away from the light to capture direct sunlight, even in shaded or north-facing locations.
Pole Mounting Option
Attach to a suitable pole for wider-area coverage or open spaces. Pole-mount clips (U-shaped fasteners) are not included.
These solar powered lights are designed for easy, reliable outdoor lighting with minimal maintenance. Here’s how they work and what you need to know for best results year-round.
Daytime Charging
Solar panel collects sunlight and charges the internal battery during the day.
For best results, install the panel facing south (in the northern hemisphere), especially in winter when sunlight is limited.
Keep the panel clean and free from shade for maximum efficiency.
Automatic Night Operation
At dusk, the light automatically switches to standby mode.
Built-in motion sensor detects movement and activates the light when needed.
After a set time with no motion, the light returns to standby or turns off to save power.
Selectable Lighting Modes
Most models offer three modes, set by a button on the light or with a remote control:
Mode 1: Motion-activated full brightness, then off — recommended in winter, or if the panel faces north.
Mode 2: Dim light all night, full brightness with motion — works well in spring/autumn with good sunlight exposure.
Mode 3: Constant light (Flood light mode) — best for summer or very high sunlight conditions; may reduce battery runtime in shorter days.
Tip: Adjust mode seasonally for optimal performance and battery life.
Maintenance & Tips
Wipe the panel regularly to remove dust and debris.
Check the light’s position seasonally to ensure good sun exposure.
Test and adjust the motion sensor range if needed.
With correct placement, seasonal mode selection, and occasional cleaning, your lights will provide years of convenient, efficient illumination—no wiring or manual switching required.
