Overview
Genuine Smart Garden upgrade kit for the Wychwood Falls — 4W hybrid solar panel, pump and 8 mm tubing supplied as one complete matched set.
Now supplied as the upgraded SW1040D hybrid kit
4W SC4W0DT crystalline solar panel
Integrated 7.4V 2000mAh Li-ion battery — 4–6 hours after dark
SP-250XS pump — 4–15V, 9.5W, up to 250 LPH, IP68
8 mm tubing included — fits older and current Wychwood Falls
Ground spike, wall bracket, screws and filter sleeve included
Now Upgraded — Hybrid Power for Your Wychwood Falls
Your Wychwood Falls' original solar panel and pump has been upgraded by Smart Garden Products to the 4W SW1040D Solar Battery Hybrid kit. It supplies the panel, pump and 8 mm tubing as a complete matched set, so it drops straight into your Wychwood Falls whether you have an older or a current model. The important difference: an integrated 7.4V battery stores power during the day, so your feature keeps running for 4–6 hours after the sun goes down.
What you had
→
What you'll receive
Different look — guaranteed fit. Everything you need in one box, including the tubing.
Product Overview

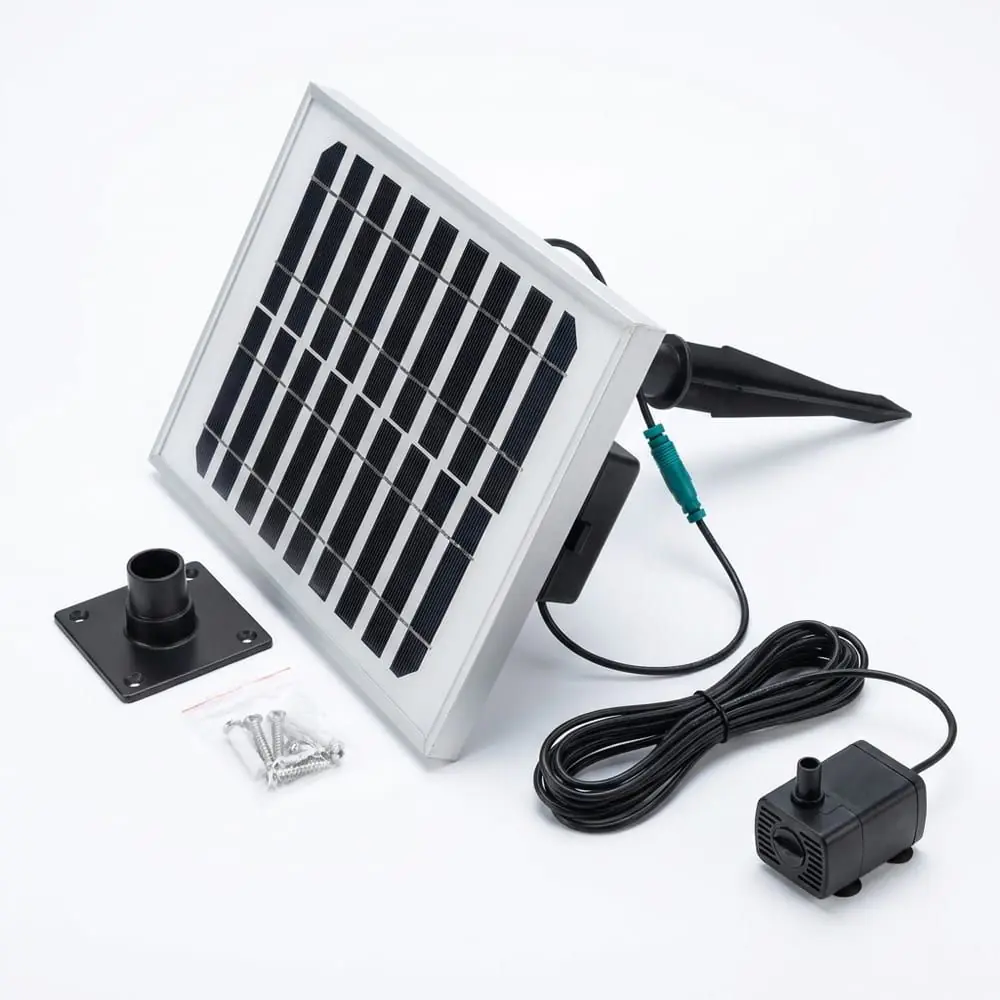

Replace the existing solar panel, battery and pump on your Wychwood Falls with the genuine SW1040D kit. Everything is supplied as a matched set — 4W SC4W0DT panel, integrated BPM74V2000 Li-ion battery, and SP-250XS submersible pump — so you restore performance without guesswork. The kit is designed for the Wychwood Falls and compatible 4W hybrid water features.
Everything you need to bring your hybrid water feature back to perfect working condition — a bigger 4W panel, a larger 2000mAh battery, and a higher-capacity SP-250XS pump than the 2W SW1020D kit.
Kit Components
SC4W0DT 4W 10V solar panel
BPM74V2000 integrated battery
SP-250XS submersible pump
Ground spike + wall bracket
All mounting hardware included
Performance
Up to 250 litres per hour flow
9.5W max pump power
4–6 hours of stored battery runtime
On/off switch for battery conservation
IP68 waterproof pump rating
Reliability
Hybrid solar + battery technology
Automatic switching between modes
Weather-resistant construction
Matched component set
Smart Garden 1-year warranty
Advanced Hybrid Power Technology
The SW1040D uses the same hybrid principle as Smart Garden's popular 2W SW1020D, scaled up to 4W for bigger features and longer running times. The 4W SC4W0DT panel powers the SP-250XS pump directly while simultaneously topping up the integrated 7.4V 2000mAh battery. When sunlight drops, the system switches to battery power automatically — no manual intervention needed.
Daytime
Direct solar power to the pump
Battery charges in parallel
Maximum flow rate
Zero running cost
Silent operation
Evening & Cloudy
Automatic switch to battery power
4–6 hours of stored runtime
Seamless transition
No flow interruption
Extended enjoyment after dark
Smart Power Management
On/off switch saves charge for later
Charge fully, then flick on for evenings
Battery protection circuit
Weather-adaptive performance
Works in cloudy UK conditions
Which Water Features Does This Fit?
The SW1040D is the 4W hybrid replacement kit for the Smart Garden Wychwood Falls. It is also likely to fit other Smart Garden 4W hybrid water features in the current range (Buddha, Pot Falls, Feather Falls, Fengshui Falls, Kingsbury, Otter Falls, Quad). If your feature was originally supplied with a 4W panel and a BPM74V-series battery box, this is the correct spare.
Confirmed Compatible
Wychwood Falls — 4W hybrid version
Likely Compatible (Same Range)
Buddha
Pot Falls
Feather Falls
Fengshui Falls
Kingsbury
Otter Falls
Quad
How To Check
Look for a 4W panel marking
Battery box model starts "BPM74V"
Pump model SP-250XS on label
Teal/green push-fit connectors
Still unsure? Call us on 07782 223103
SW1020D vs SW1040D — Which Do You Need?
Smart Garden makes two hybrid replacement kits. Pick the one that matches the wattage printed on your original panel.
SW1020D (2W)
2W SC2W0DT panel
NE90X3S pump
Smaller features
Shorter battery runtime
For 2W hybrid water features
SW1040D (4W) — this kit
4W SC4W0DT panel
SP-250XS pump (250 LPH)
2000mAh battery — 4–6 hrs runtime
Larger features like Wychwood Falls
For 4W hybrid water features
Not Sure?
Check the watts printed on the back of your old panel
2W = order SW1020D
4W = order this SW1040D
Phone/text us a photo: 07782 223103
We'll identify it for you before you buy
Why Buy This From PowerBee
Genuine Smart Garden Products stock — not a third-party copy
16 years of solar water feature expertise — we know which spare fits which feature
Free 24-hour UK mainland delivery on every order
30-day money-back guarantee
Professional installation support by phone or text: 07782 223103
Best Buy Award winner 2021–2025
Rate this product
0/5
0 Reviews
Please rate this product, describe its advantages and disadvantages, please share your impression about its use
Remove the old panel and pump. Lift the old pump from the reservoir and disconnect the existing solar panel.
Mount the new panel. Use the supplied ground spike in a sunny border, or the wall bracket and screws to fix it to a wall, fence or post. Face it towards the midday sun.
Fit the pump and tubing. Push the supplied 8 mm tubing onto the pump outlet, trim it to length, and connect the other end to your feature's water inlet. Sit the pump flat on the base of the reservoir, fully submerged.
Connect the pump to the panel. Push the connectors together until they seat firmly.
Switch the battery on. Set the switch on the rear of the panel to ON so the battery charges during the day. Leave it OFF if you would rather store the charge for a particular evening.
Fill and test. Top the reservoir up and place the panel in direct sunlight. Allow a full sunny day for the first charge before expecting evening running.
Tip: keep the water topped up — running the pump dry is the most common cause of failure and is not covered by warranty.
This is a hybrid solar kit. During daylight the solar panel powers the pump directly and, at the same time, tops up the Li-ion battery built into the back of the panel.
As the light fades the kit switches over automatically and runs the pump from the stored charge, giving roughly 4–6 hours of running after dark from a full charge. No mains supply and no timer are needed — the changeover happens on its own.
The on/off switch on the rear of the panel controls charging. Leave it ON for normal day-and-evening running, or switch it OFF to bank the charge for an evening when you particularly want the feature running.
